Pulp & Paper Tank Repair

Carbon Fiber Strengthening of HD Stock Tank

Problem vs Solution


• The high density stock tank was structurally deficient in the upper 1/3 of the tank due to aggressive corrosion above liquid line

• The Upper 1/3 of the tank had over 900 holes due to internal corrosion

• TankWrap™ was designed for external application for restoring structural integrity

• An internal ChemSeal™ liner was applied to arrest corrosion

• Client needed a 3 year life extension however the TankWrap™ system has been in operation for +16 years

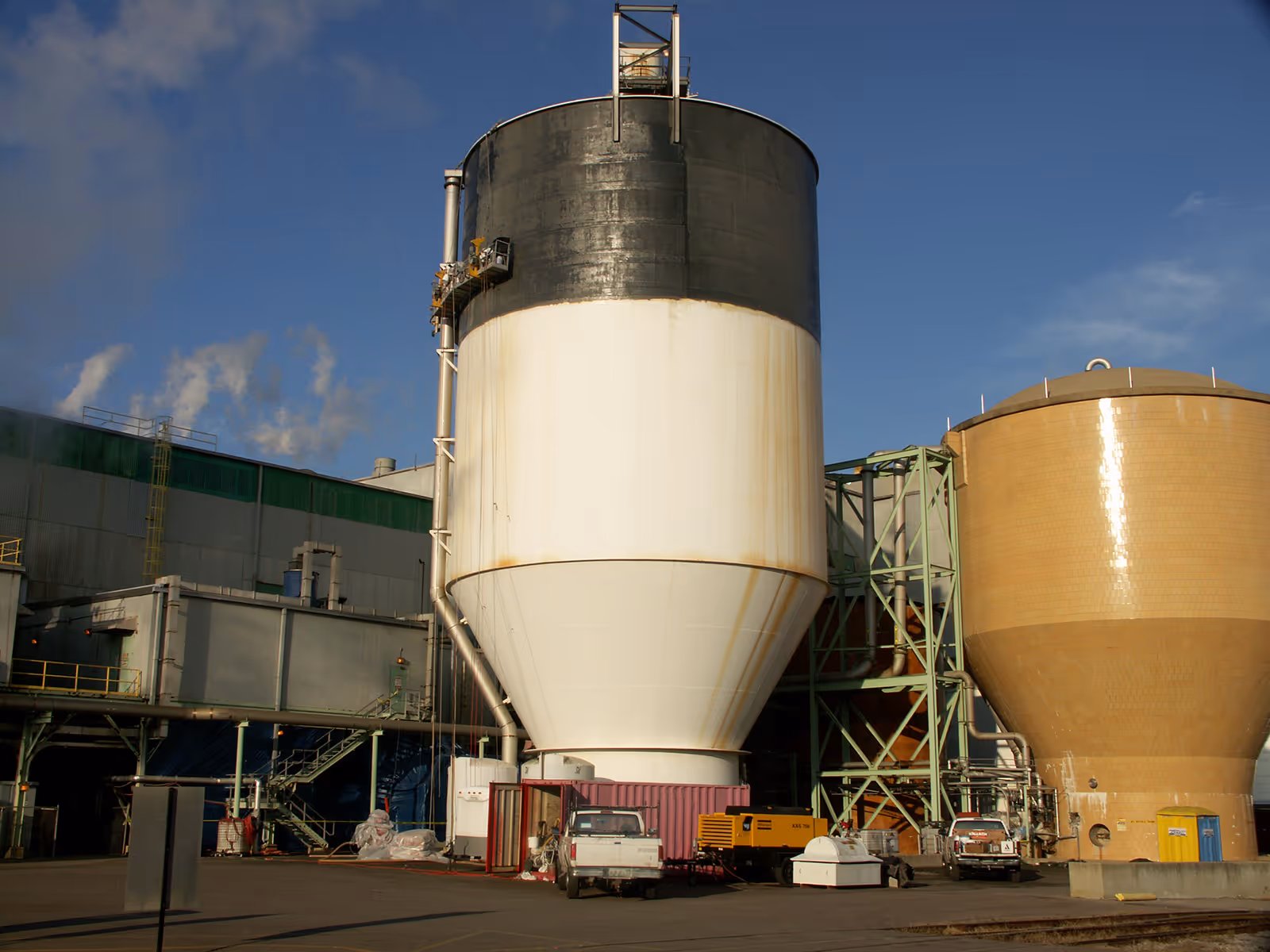

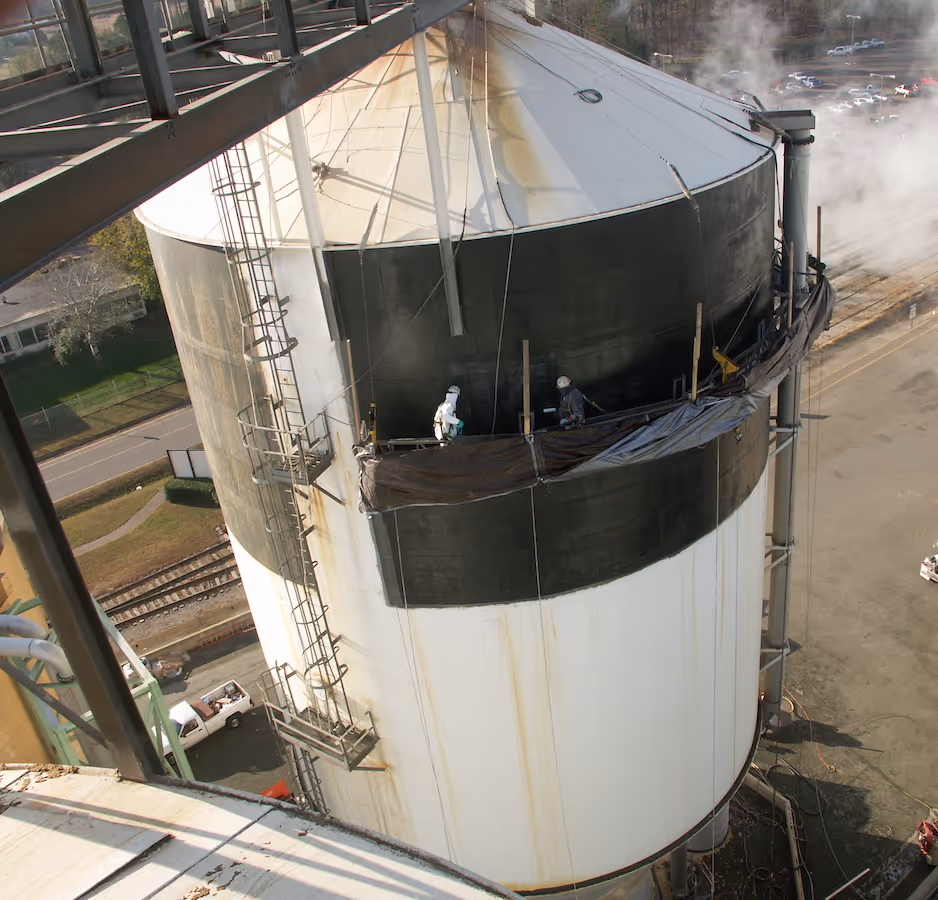

   See the before and after photos below.
