Nickel Refining Tank Repair

Carbon Fiber Patches & Strengthening of Stainless Steel Refining Tank

Problem vs Solution


• Finite Element Analysis (FEA) revealed the stainless steel tank was structurally deficient in multiple locations

• TankWrap™ structural calculations were performed to fully restore the structural deficiencies

• TankWrap™ was utilized in lieu of welded stainless steel angles due to ease of installation in restricted access areas

• The exterior of the tank was 200F and operated continuously during the installation

• Service life was extended 10 years in the localized areas repaired with TankWrap™

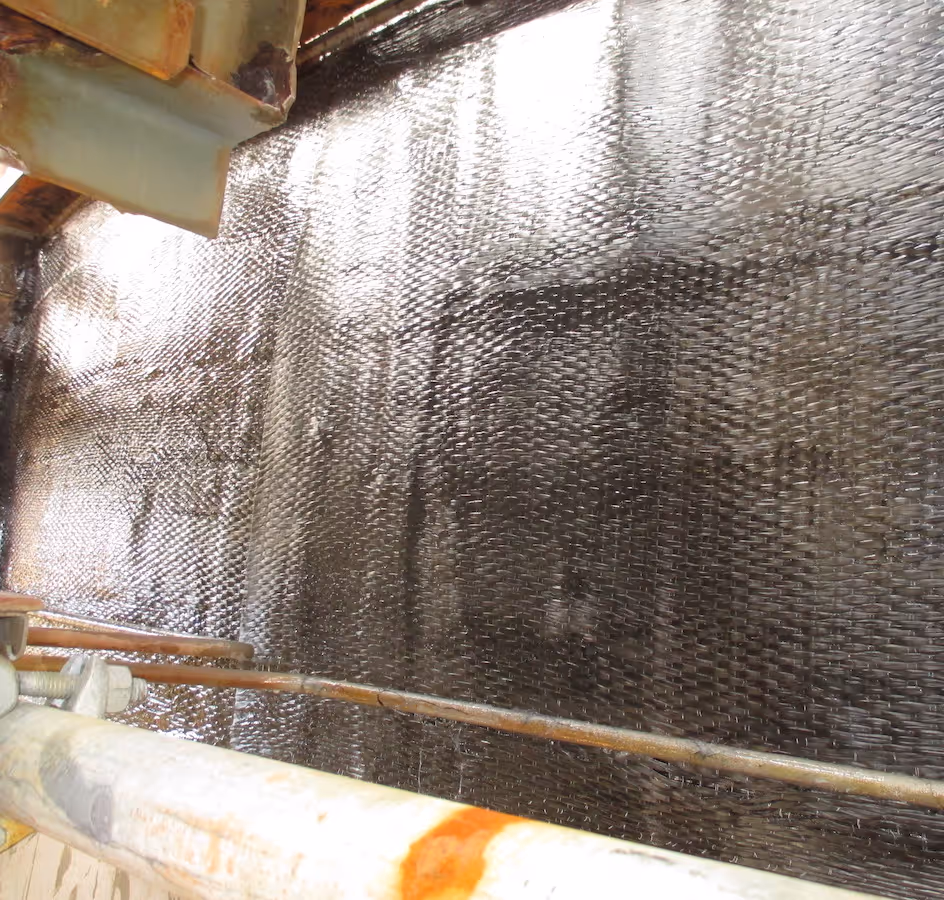

   See the before and after photos below.
